Square Tubing Inserts are ideal for finishing off and protecting the ends of hollow metal tubes and pipes commonly used in the construction of all types of furniture, fixtures, appliances and other equipment. Applications include:
Exercise Equipment
Patio Furniture
Metal Furniture
Materials
Made with low density polyethylene. View our material chart for specifications.
Features
- Provides clean simple finish for tubes and pipes
- Slides easily over surfaces from carpeting to concrete
- Durable material and construction can withstand harsh environments
- Protects floors from scratches, scuffs and other damage
Standard Colors
Black is standard. Other colors available upon request.
Additional Shapes
Other shapes include round and rectangular tubing inserts.

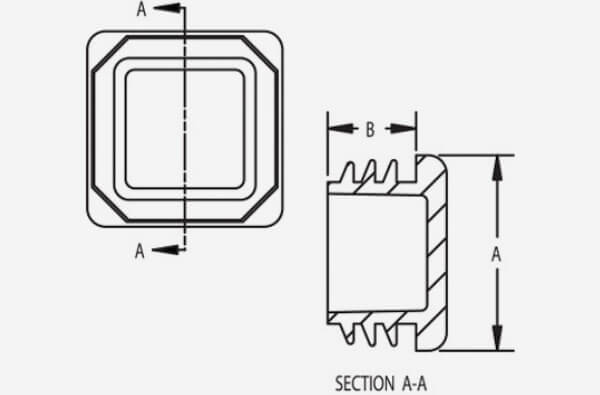

Square Tubing Inserts
| Tube Size “A” (in) | Tube Gauge | Tube Wall Thickness |
|---|---|---|
| 0.500 | (16-18) | .065 – .049 |
| 0.625 | (14-20) | .083 – .035 |
| 0.750 | (14-20) | .083 – .035 |
| 0.875 | (14-20) | .083 – .035 |
| 1.000 | (10-14) | .134 – .083 |
| 1.000 | (14-20) | .083 – .035 |
| 1.125 | (14-20) | .083 – .035 |
| 1.250 | (14-20) | .083 – .035 |
| 1.375 | (14-20) | .083 – .035 |
| 1.500 | (10-14) | .134 – .083 |
| 1.500 | (14-20) | .083 – .035 |
| 1.750 | (14-20) | .083 – .035 |
| 2.000 | (10-14) | .134 – .083 |
| 2.000 | (14-20) | .083 – .035 |
