Colorful Hanger Caps add convenience to hundreds of products. Providing a snug, secure fit, these caps won’t slide off under the toughest conditions.

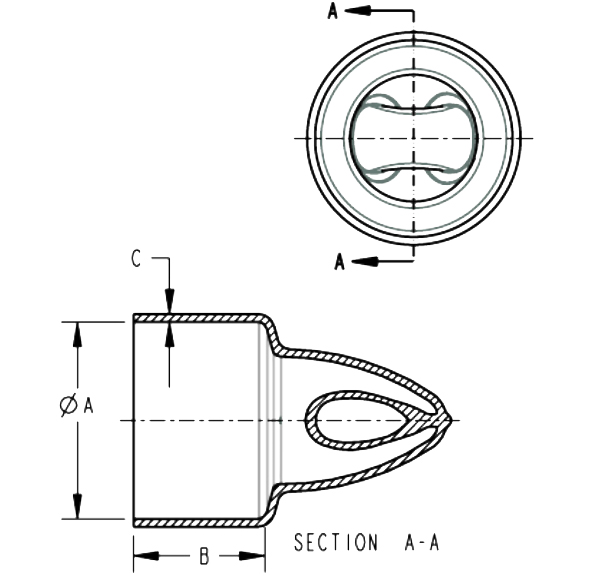

Step 1 — Choose an Inside Diameter (A)
The flexible nature of vinyl material suggests a cap with smaller inside diameter than the item you are trying to cover will help achieve a tight fit.
Step 2 — Choose a Length (B)
Hanger Caps are available in any length, in .062″ (1.57 mm) increments. Minimum length is .187″ (4.75mm). Maximum length is stated in chart.
- Inside length tolerance is ± .062″ (1.57 mm).
- Inside length is measured along the side wall to the radius of the closed end, not down the center.
Wall Thickness “C” is measured .250″ (6.35 mm) from the open end, increasing slightly toward the closed end. Wall tolerance is ±.010″ (0.25 mm).
Hanger Caps
| Inside Diameter “A” | Inside Length “B” | ||
|---|---|---|---|
| Inches | mm | Inches | mm |
| — | — | +/- .062 | +/- 1.57 |
| 0.531 | 13.49 | 1.750 | 44.45 |
| 0.800 | 20.32 | 1.500 | 38.10 |
| 1.050 | 26.67 | 1.500 | 38.10 |
| 1.375 | 34.93 | 1.500 | 38.10 |
| 1.640 | 41.66 | 1.250 | 31.75 |
| 1.815 | 46.10 | 1.500 | 38.10 |
| 2.000 | 50.80 | 1.500 | 38.10 |
| 2.500 | 63.50 | 1.500 | 38.10 |
| 3.000 | 76.20 | 1.500 | 38.10 |
Step 3 — Choose a Color
Caps are manufactured in 8 standard colors for multiple materials. Certain popular sizes are also stocked in black and red for quick shipment. Custom colors are also available.
Stock
Standard
Custom
Step 4 — Choose a Material
Stocked Hanger Caps are made from a 75 durometer PVC with a smooth surface and glossy finish. However, these caps can be made in materials with a variety of characteristics and features as shown below.
Material Characteristics
1. Hardness
2. Gloss
3. Texture
4. Special Features
-
High Temperature Resistant -
Highly Weather Resistant -
Fire Resistant (UL Qualifiable) -
Anti-Static -
Dilatable
Step 5 — Optional Hanger Tip Style
Colorful Hanger Tips add convenience to hundreds of products. Providing a snug, secure fit, these tips won’t slide off under the toughest conditions. This product line is not stocked. Any of these items may be ordered and scheduled for production.

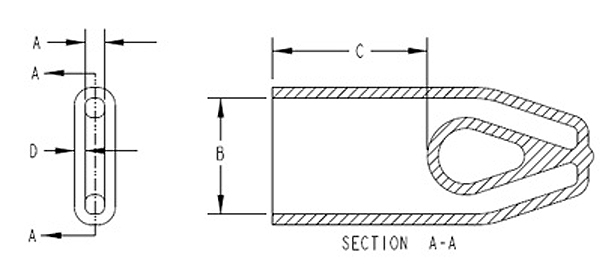

HANGER TIPS – FLAT
| Inside Dimension “A” (inches) | Inside Dimension “B” (inches) | Inside Length “C” (inches) | Wall Thickness “D” (inches) |
|---|---|---|---|
| 0.124 | 0.750 | 1.625 | 0.070 |
| 0.250 | 1.000 | 2.250 | 0.070 |
| 0.375 | 1.000 | 1.750 | 0.070 |
HANGER TIPS – ROUND
| Inside Diameter “A” (inches) | Outside Length “B” (inches) | Wall Thickness “C” (inches) |
|---|---|---|
| 0.750 | 2.125 | 0.070 |
| 0.875 | 2.750 | 0.070 |
| 0.875 | 3.125 | 0.070 |
Step 6 — Add Further Customization
At StockCap, our service extends beyond molding protective caps, plugs and covers to include a variety of finishing and packaging options. We have an entire facility set up to print, punch, package and more so that your team can focus on what you do best.
