Designed to provide tight seals on both ends of threaded and non-threaded through holes. The EPDM material will resist temperatures up to 475°F (246°C) and is specifically designed for powder coating and E-coating applications.
Key Features
Withstand temperatures up to 475°F (246°C).
No risk of contamination to paint line.
Superior chemical resistance.
Plugs can be re-used many times.
Custom sizes available with minimal tooling investment.
In stock for immediate shipment.
16 Sizes
Available in 16 sizes, these EPDM rubber plugs will stretch when pulled through a hole and then relax to provide an air tight seal. Choose a diameter slightly larger than the hole to mask.
Color & Material Specs
Manufactured in black EPDM rubber. View our material chart for specifications or compare with other high temperature resistant materials.

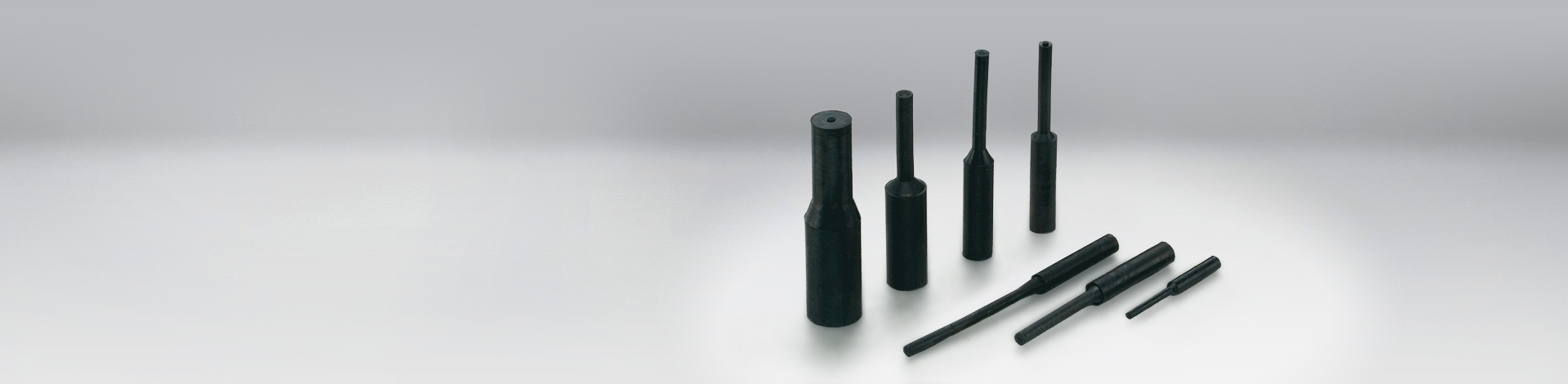

EPDM Pull Plugs
| Major Diameter “A” (in) | Minor Diameter “B” (in) | Plug Length “C” (in) |
|---|---|---|
| 0.067 | 0.047 | 0.625 |
| 0.109 | 0.062 | 0.625 |
| 0.118 | 0.082 | 1.000 |
| 0.140 | 0.082 | 0.625 |
| 0.156 | 0.082 | 0.625 |
| 0.158 | 0.093 | 1.000 |
| 0.218 | 0.110 | 1.000 |
| 0.257 | 0.130 | 1.000 |
| 0.281 | 0.138 | 1.000 |
| 0.335 | 0.157 | 1.000 |
| 0.350 | 0.157 | 1.000 |
| 0.388 | 0.157 | 1.000 |
| 0.400 | 0.157 | 1.000 |
| 0.510 | 0.250 | 1.000 |
| 0.896 | 0.375 | 1.000 |
| 1.020 | 0.375 | 1.000 |
